5.0 inch Customized Capacitive Touch Screen 5.0" CTP Touch Panel

5.0 inch CTP TOUCH SCREEN

5.0 inch Customized Capacitive Touch Screen 5.0" CTP Touch Panel

Touch Type: 5.0 inch PCAP touch screen

Touch Structure: G+G

Touch Thickness: 3.15mm

Viewing Area: 108.40. x 65.20mm

Outline Dimension: 126.80 x 84.30mm

Touch IC: ILI2117

Interface: I2C

  • 商品番号 :

    FP-050C01

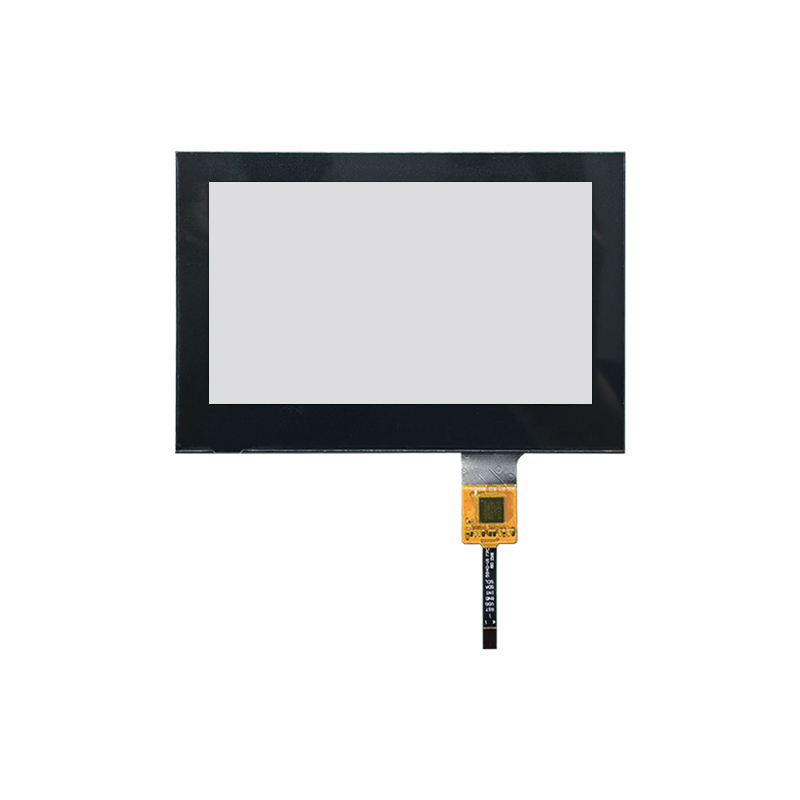

he standard Model # FP-050C01 is a customized 5.0 inch Capacitive Touch Screen featuring G+G structure (glass + glass), delivering high sensitivity, optical clarity, and strong anti-interference performance.  The driver IC is ILI2117, supporting I2C or USB interfaces via a 6-pin FPC connector

5.0 inch customized capacitive touch

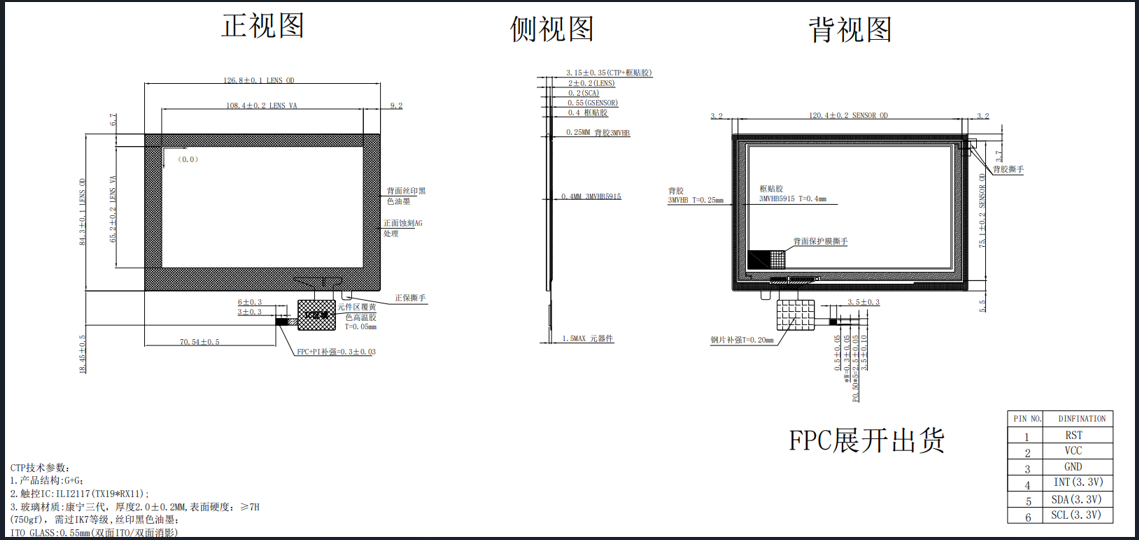

Product Drawing:

5.0 inch customized capacitive touch screen



Size & Structure:

No. Item SPECIFICATION
1 Touch Size 5.0 inch CTP touch
2 Touch Type G+ G
3 Touch Structure Cover Lens+ SCA+ITO Glass + FPC
4 Cover Lens Thickness 2.0mm
5 SCA thickness 0.20mm
6 ITO Glass thickness 0.55mm
7 Module Thickness 2.75mm
8 CTP Viewing Area 108.40 x 65.20mm
9 LENS Outline Dimension 126.80 x 84.30mm

Function:

No. Item SPECIFICATION
1 Driver IC ILI2117(TX19*RX11)
2 Interface I2C
3 Max. Touch Points 5
4 Surface Hardness 7H (750gf)
5 Light Transmission >85%
6 Operating Temperature -30℃~+85℃
7 Storage Temperature -30℃~+85℃
8 Operating Humidty 45%~90% RH



Features:

Cover Glass

  • Material:  Corning Gorilla Glass 3, thickness 2.0±0.2mm, surface hardness ≥7H (750gf), passing IK7 impact resistance certification.
  • Surface Treatment: Silk-screening: Black ink border with customizable LOGO or patterns.
  • Reinforcement Standards:

         - Compressive Stress (CS) ≥ 750Mpa

          - Depth of Layer (DOL) ≥ 35μm

          - Surface Tension (CT) ≤ 67

         - 4-Point Bending Strength (4PB) ≥ 600Mpa

         - Etched AG Process:

         - Gloss (60°): 80±10%

         - Haze: 6±3%

         - Surface Roughness (Ra): 0.1±0.03μm

  • Benefits:  Anti-glare, anti-fingerprint, and scratch-resistant, ideal for outdoor or high-brightness environments.

 Air Bonding (Double-sided tape bonding)

  • Pre-applied 0.4mm double-sided adhesive tape on the back of the cover glass for rapid assembly and cost-effective production.



Standard and Customized Capacitive Touch Screen:

Shengfeng offers not only the existing standard 5.0 CTP touch screen, but also are capable of custom-design 5.0 inch touch screen solution tailored to your specific requirements. Here are the design options you can choose from:

  • Touch Screen Structure:  G+G, G+F, G+F+F;
  • Touch Driver IC:  Designate IC from various IC such as ETTI, AMTEL, FOCALTECH, GOODIX, and define interface type.
  • FPC Connector:  Customize the FPC connector to fit your device's specific layout and design requirements.
  • Cover Glass:  Design a unique cover glass appearance tailored to your specific project needs, including custom shapes, thickness, colors, coatings, or other visual enhancements.



Why Choose Us?

√Quality Assurance:  Corning glass and top-tier ICs with IK7, RoHS, and other international certifications.

Flexible Production: Support small-batch prototyping and high-volume manufacturing with agile lead times.

Expert Team:  Over 10 years of touch technology experience, providing end-to-end services from design to mass production.

Contact us today to start your customized touch solution!
