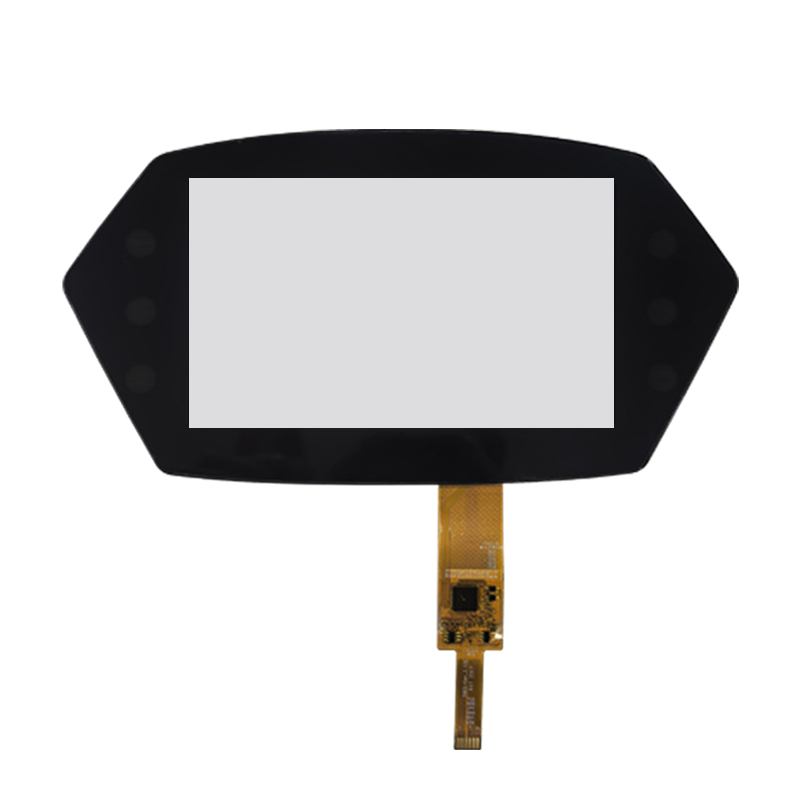

The standard Model # FP-050C2 is a 5.0 inch CTP Capacitive Touch Screen adopting advanced G+G (Glass+Glass) structure design. The driver IC of this 7.0 inch CTP touch sensor is ILI2130, compatible of I2C interface.

The Cover lens  is a tailored cover glass. It is of abnormal shape, and made of 1.6mm Asahi Glass Tempered Glass Material. And the cover lens is black color printing with UV-resistant ink for outdoor application.

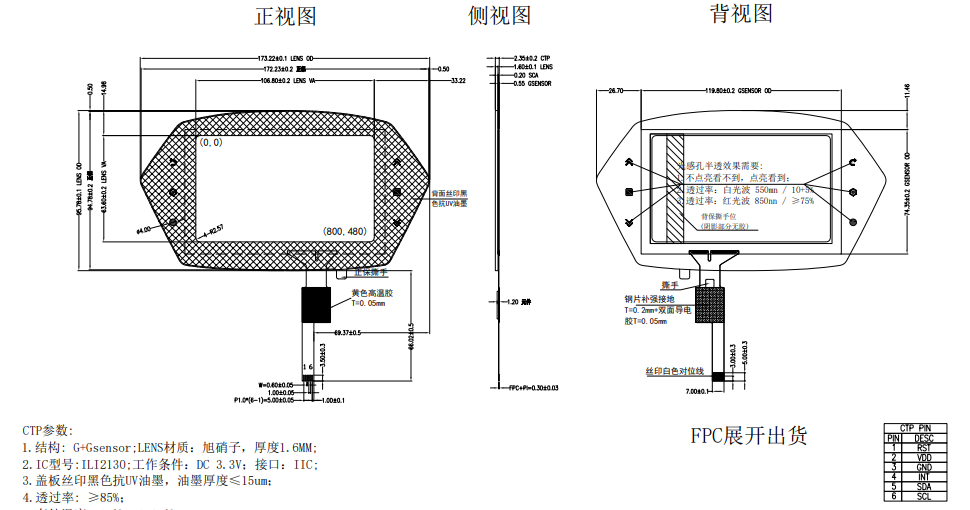

Product Drawing：

Size & Structure:

Function：

Features:

Touch Performance

• Size Specification:  5.0 inch CTP (Capacitive Touch Panel)
• Structural Design:  G+G structure, balancing hardness and touch sensitivity
• Driver Solution:  Equipped with high-performance ILI2130 sensor driver IC, supporting I2C interface communication
• Touch Characteristics:  Fast multi-touch response (response time ≤ 5ms), positioning accuracy up to ±0.1mm, strong anti-interference ability

Material and Craftsmanship:

• Cover Glass:  Uses Asahi Glass 1.6mm ultra-hard tempered glass with Mohs hardness of 7, excellent scratch resistance and impact resistance, light transmittance ≥ 92%
• Shape Customization:  Fully customized abnormal shape according to customer requirements, adapting to various special structure equipment enclosures
• Silk-screen Printing:  Uses UV-resistant black ink, which does not fade or discolor during long-term outdoor use.  And 6 customized silk-screen icons  with semi-transparent effect processing.

Standard and Customized Capacitive Touch Screen:

Shengfeng offers not only the existing standard 5.0 CTP touch screen, but also are capable of custom-design 5.0 inch touch solution tailored to your specific requirements with below customization advantages:

• Full-dimensional customization:  From size, shape to silk-screen patterns, fully matching customer product design requirements
• High-quality materials:  Combination of Asahi tempered glass and UV-resistant ink ensures long-term stable operation of products
• Technical support:  The ILI2130 driver IC solution is mature, highly compatible, and supports integration with mainstream operating systems

Contact us

For detailed parameters, sample application or bulk customization quotes, please contact us to provide you with exclusive solutions!
