-30°C ~ +85°C Automotive Display 4.3 inch IPS TFT LCD 480*272 RGB Interface With Customized Cover Glass

• Classic Resolution: The 4.3" 480×272 WQVGA resolution of 16:9 landscape screen, meets the demands of mainstream scenarios such as data monitoring and equipment control.
• Wide Viewing Angle: The 80/80/80/80 wide viewing angle ensures clear images from all angles.
• Ultra-Wide Temperature: Supports operation in extreme ranging from -30°C to 85°C, ensuring stable device performance under harsh conditions.
• Mature Driver Solution: The standard Parallel RGB (8-bit) interface is compatible with most main control devices, offering strong compatibility and easy development.

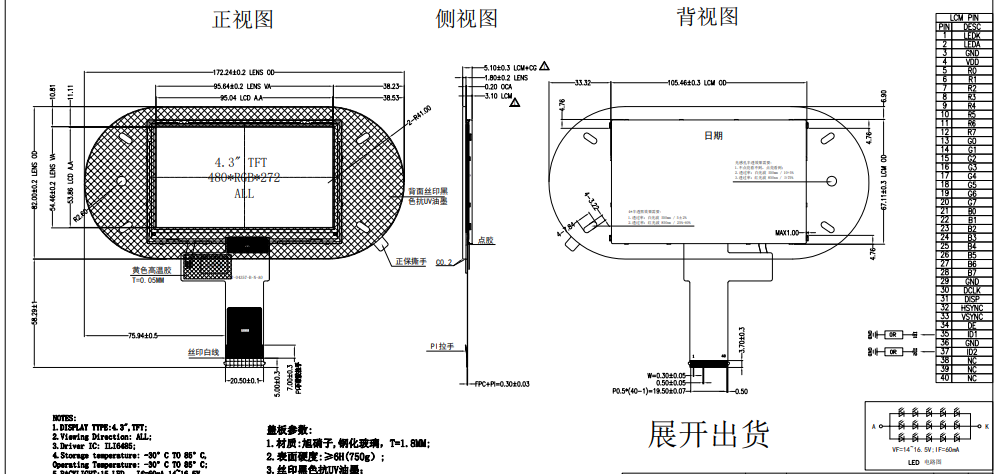

• Custom Cover Glass: A 1.8mm-thick oval-shaped custom glass cover glass meets personalized design needs while providing high hardness and scratch resistance, effectively protecting the display from external damage.
• Robust and Durable Structure: The optically bonding process between TFT display and cover glass, eliminates air refraction, reduces reflections, and offers higher strength.
• Sunlight Readability: The 4.3 inch Display Module achieves a surface brightness of 680cd/m²， meeting the requirement for clear visibility in sunlight.

Applications:

This 4.3 inch TFT display module (with a custom cover glass) features "wide viewing angle + ultra-wide temperature range + customization" as its core highlights. With a 480×272 resolution and a 16:9 landscape screen, it meets the demand for clear display. Its temperature range of -30°C to 85°C makes it suitable for various demanding scenarios. Paired with an anti-UV  cover glass that enhances protection and durability, and equipped with an ILI6585 driver and a Parallel RGB interface for guaranteed compatibility, it is an optimal display solution for industries such as industrial, automotive, and medical fields.

Industrial Control Scenarios

• Pain Points Addressed:  High and low temperature fluctuations, dusty environments, and the need for multiple personnel to view data in workshops.
• Adaptation Advantages:  The -30°C to 85°C wide temperature range tolerates dust, while the 80/80/80/80 wide viewing angle supports multi-station collaboration. The scratch-resistant cover glass withstands equipment collisions, ensuring long-term stable operation of  industrial controls.

Automotive Electronics Scenarios

• Pain Points Addressed:  High and low outdoor temperatures (summer heat/winter cold), screen reflections, and long-term use fading.
• Adaptation Advantages: The wide temperature range handles extreme weather conditions, while the 680cd/m² brightness enables visibility in sunlight. The anti-UV cover glass prevents fading from sun exposure, and the 16:9 landscape screen fits the layout of automotive center consoles and dashboard secondary screens.

Medical Instrument Scenarios

• Pain Points Addressed: The need for clear data reading, susceptibility to surface contamination, and frequent equipment cleaning.
• Adaptation Advantages: The 480×272 resolution and wide viewing angle allow medical staff to read data accurately from multiple angles without deviation. The cover glass is easy to clean and corrosion-resistant, meeting medical and hygiene standards.

Outdoor Equipment Scenarios

• Pain Points Addressed: Strong UV rays causing fading, large temperature variations, and invasion by rain and dust.
• Adaptation Advantages: The anti-UV ink resists UV aging, while the wide temperature range and optical bonding provide dust and water resistance. It is suitable for outdoor detectors and environmental monitoring terminals, ensuring stable long-term performance.
