Automotive Display 6.2 inch TFT Display 1024*600 RGB interface -30~80℃ High Brightness 1000cd/m2

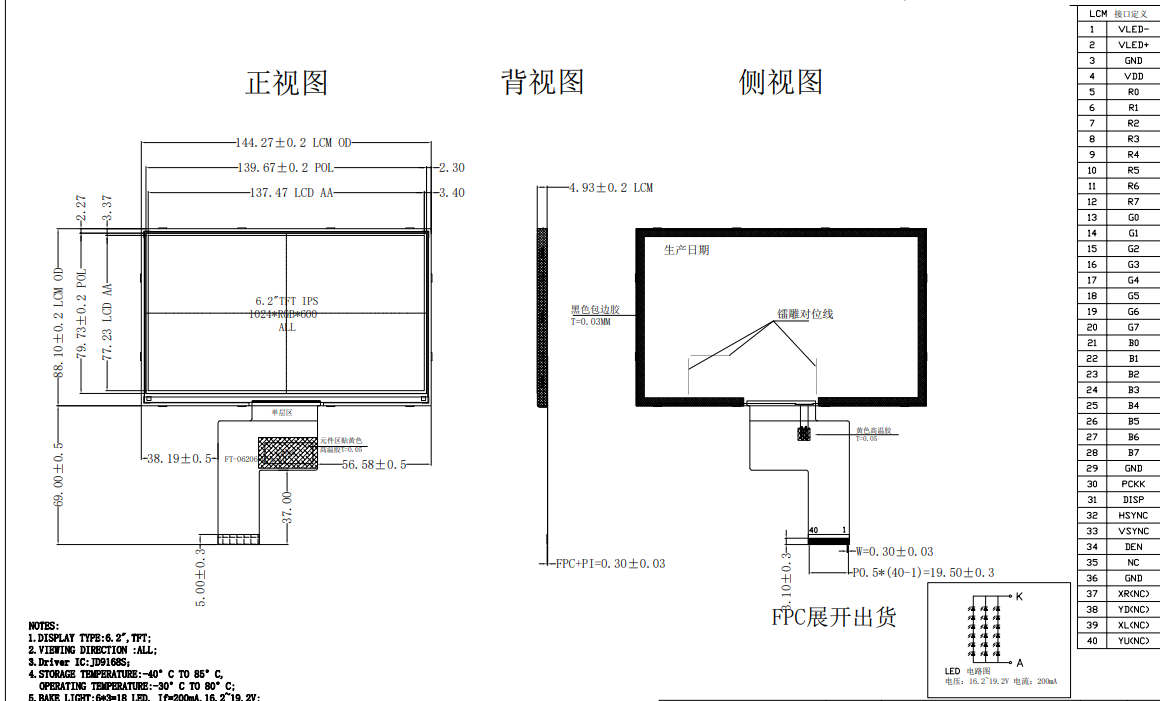

Product Drawing:

Product Specification:

Product Features:

Golden 6.2-inch Size

• The 6.2 inch automotive dsplay, with 1024×600 HD resolution, delivers a 191 PPI retina-level clarity.
• It saves more space than a 7.0 inch screen while displaying 20% more content than a 5.0 inch screen, making it the optimal cost-effective display size solution for vehicle dashboards and industrial control equipment.

HD Wide-Viewing-Angle Display

• Full Viewing Angle:  Ensures no color shift or distortion from any viewing angle, guaranteeing accurate information viewing for multiple users and perspectives.
• Ultra-High Brightness: its 1000 cd/m² brightness ensures clear visibility even under direct sunlight, meeting the demands of all-day operation for agricultural machinery and outdoor vehicles.
• RGB Interface: Compatible with mainstream controllers, simplifying connections and reducing integration complexity.

Automotive-Grade Reliability

• Automotive-Grade Wide Temperature Range (-30 to 85°C):  Meets automotive and industrial temperature requirements, ensuring stable operation in extreme cold or heat.
• 50,000-Hour Backlight: High-quality LED backlight ensures long-term, stable performance during continuous use and reduces maintenance costs.
• High Reliability: Designed with vibration and interference resistance to withstand harsh automotive and industrial environments, ensuring stable and reliable operation.

Applications:

🚜 Agricultural Machinery Central Control Display

Suitable for tractors, harvesters, and other agricultural vehicle cabins.

Pain Point Solution: Effectively resolves the issue of traditional agricultural machinery displays being "unreadable" under midday sunlight. The wide-temperature design handles day-night temperature variations and seasonal changes in field operations, while vibration resistance adapts to rugged terrains.

🛵 Two-Wheeler/Three-Wheeler Cluster Display

Ideal for electric vehicles and motorcycle Cluster Displays, with wide-temperature adaptability for changing outdoor climates.

Pain Point Solution: High brightness ensures all-weather riding visibility; the wide temperature range covers environments from winter lows to summer heat around battery compartments; compact size with a large viewing area enhances the vehicle's technological appeal.

🏭 Industrial Equipment Display

Suitable for industrial HMI, control panels, monitoring displays, etc.

Pain Point Solution: Stable operation in workshop environments with dust, vibration, and temperature fluctuations. HD resolution accommodates complex control buttons, data monitoring charts, and log information.

🏥 Medical Equipment Display

Suitable for medical instrument panels and diagnostic device display units, with high reliability assurance.

Pain Point Solution: High reliability ensures long-term stable operation of medical devices; HD wide-viewing-angle technology allows medical staff to accurately read vital sign data and images from different angles.
