サイズ :
2.8"部品番号 :
FT-02877-B-N-B解決 :
240*320視野角 :
Freeインターフェース :
SPIタッチスクリーン :
CGドライバーIC :
ST7789T3温度 :
-20℃-70℃輝度 :
120 cd/㎡モジュール外形(mm) :
50.00*69.20*2.30AAサイズ(mm) :

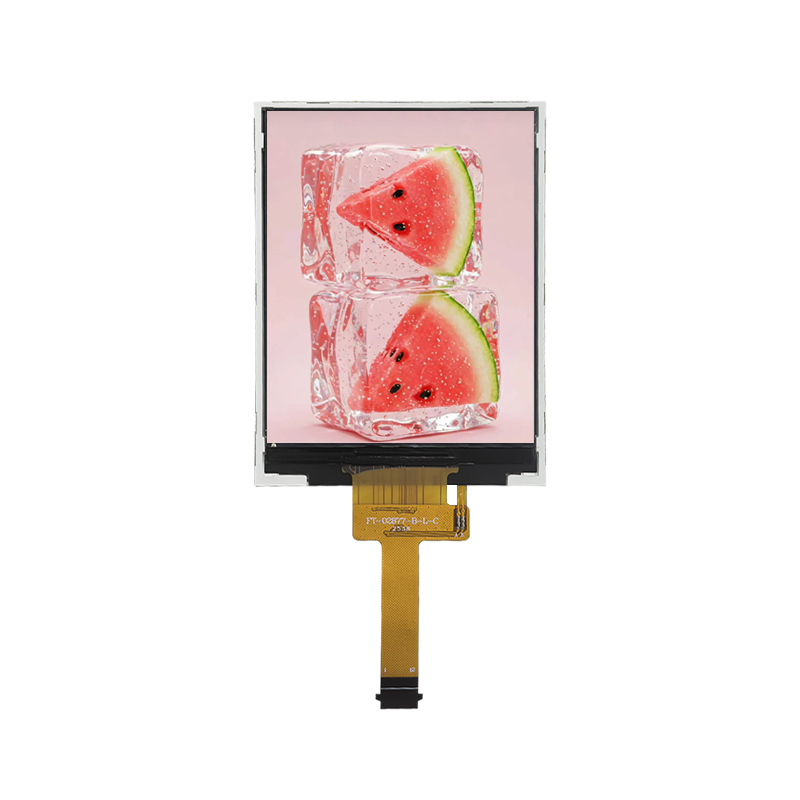

43.2*57.6The model#FT-028077, this 2.8 inch TFT LCD Display with a resolution of 240(RGB)×320 (QVGA) and a 3:4 aspect ratio, portrait mode, perfectly match the needs of vertical-screen devices such as smart bracelets, handheld detectors, and smart home control panels.. Its LCD Active Area (AA) size is 43.2×57.6 mmmm(W×H), and module outline dimension is 50.00×69.20×2.30 mm (L×W×H). Equipped with ultra-high brightness of 1200cd/m², high contrast ratio of 1200:1, and full viewing angle design, it delivers clear images even in strong light environments. The ST7789T3 driver IC combined with 4SPI interface significantly enhances integration convenience.

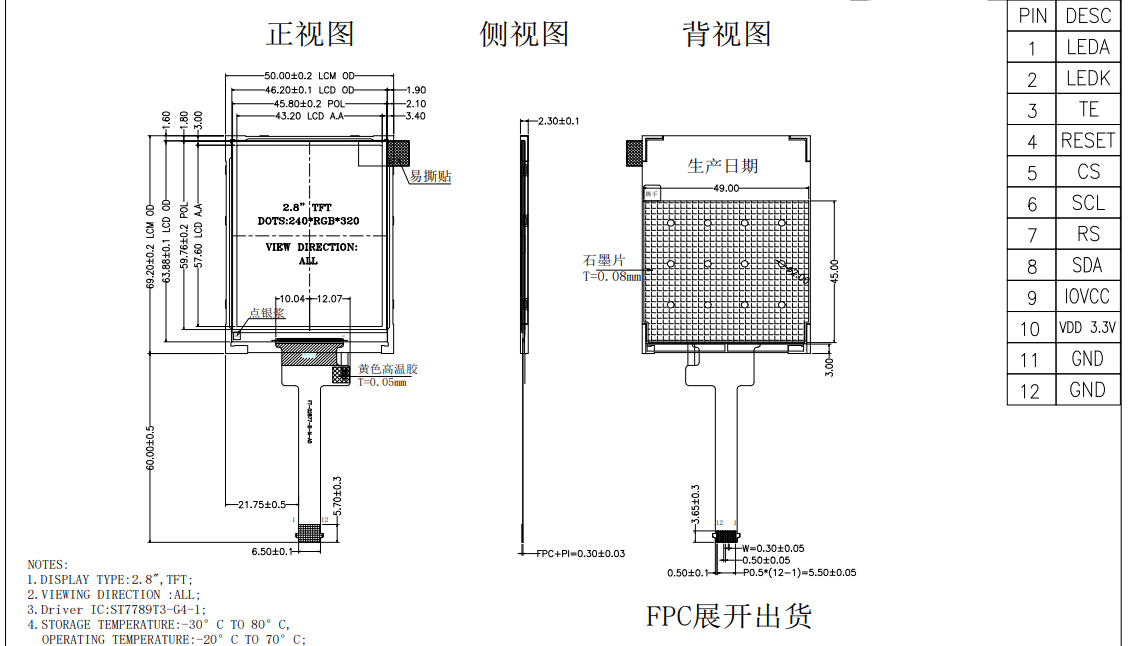

Product Drawing:
Product Specification:
| No. | Item | TFT LCD SPECIFICATION |
| 1 | Part No. | FT-02877-B-N-B |
| 2 | LCD Size | 2.8 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 280(RGB) × 320, QVGA |
| 4 | Display Mode | ISP/ Transmission / Normally Black |
| 5 | Active Area | 43.2×57.6mm |
| 6 | Module Dimension | 50.00×69.20×2.30mm |
| 7 | Viewing Direction | ALL view |
| 8 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 9 | Contrast | 1200:1 (Typ.) |
| 10 | Luminance | 1200 cd/㎡ |
| 11 | Backlight | 6 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch screen |
Features：
Applications：
This 2.8 inch TFT LCD module ensures perfect visibility under direct sunlight with 1200 cd/m² high brightness, combined with industry-leading 1200:1 contrast ratio for clear and sharp image display. It is ideal for handheld devices and automotive applications:
