5.0”Automotive TFT Display 5.0 inch TFT LCD 800*480 RGB Interface 1000 cd/m² Customized Cover Glass -30°C~85°C

Automotive-Grade 5.0 inch TFT Display: Stable Performance in Extreme Environments

• Classic Resolution: The 5.0 inch Display with 800(RGB)×480 WVGA resolution clearly displays dashboard information such as speed, battery level, turn signals, and fault alerts.
• Ultra-Wide Temperature: Supports -30°C to 80°C operating temperatures and -35°C to 80°C storage temperatures, enduring extreme automotive  application high/low-temperature conditions to ensure stable dashboard data (speed, battery, mileage, etc.) and riding safety.
• High Brightness: With a surface brightness of 1000cd/m², the module remains legible under direct sunlight, resolving visibility issues caused by strong glare in automotive scenarios.
• Automotive-Grade Interface: Equipped with an ST7265 driver IC and Parallel RGB (1ch, 8-bit) interface, paired with a 40Pin FPC connector, it adapts to most 2/3-wheel vehicle dashboard control schemes.

Customized Cover Glass: Dual Optimization of Protection and Adaptability for Automotive Device

• Exclusive Customization:  Tailored to client-specific 2/3-wheel vehicle dashboard dimensions (e.g., curved or irregular shape) and cutout requirements (e.g., button holes, sensor light transmission holes).
• Optical Bonding Technology: Eliminates the air gap between the cover and display, reducing glare interference (especially for nighttime driving) and enhancing contrast. It also improves dust/water resistance (IP65 rating) to extend module lifespan.
• High-Hardness Material: The custom glass cover uses high-hardness glass to resist scratches from road debris or daily cleaning, preventing display damage due to cover breakage. This aligns with automotive devices' "long-term outdoor use and susceptibility to impact" traits, reducing maintenance costs.

Applications:

This high-performance 5.0 inch TFT LCD display module, featuring 800×480 WVGA resolution, -30°C to 80°C ultra-wide operating temperatures, and 1000cd/m² brightness remains visible under direct sunlight. Integrated with a customized Cover Glass and optical bonding technology, it is ideal  display solution for Instrument Cluster of:

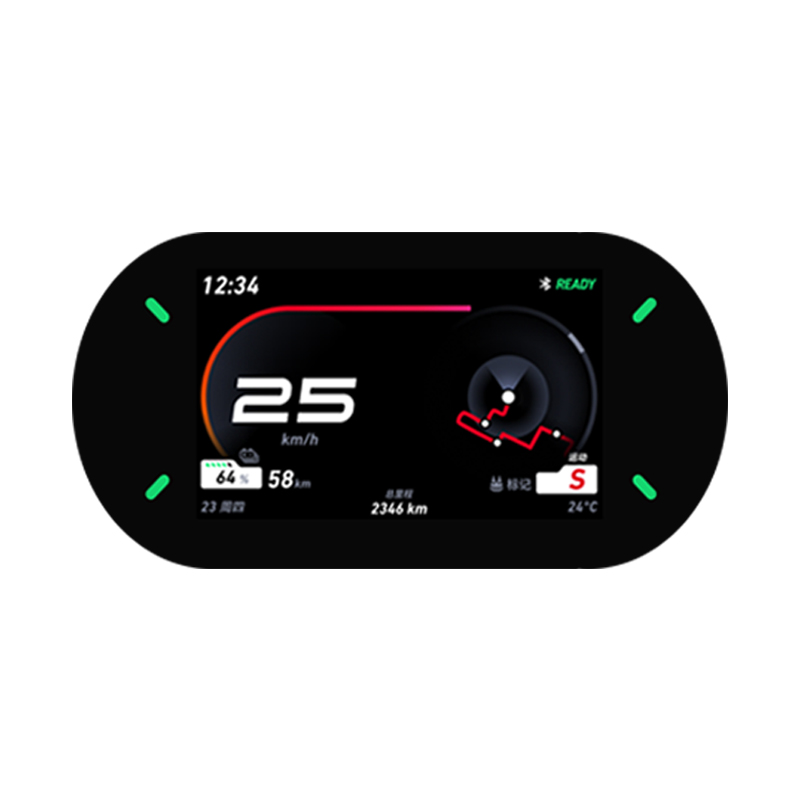

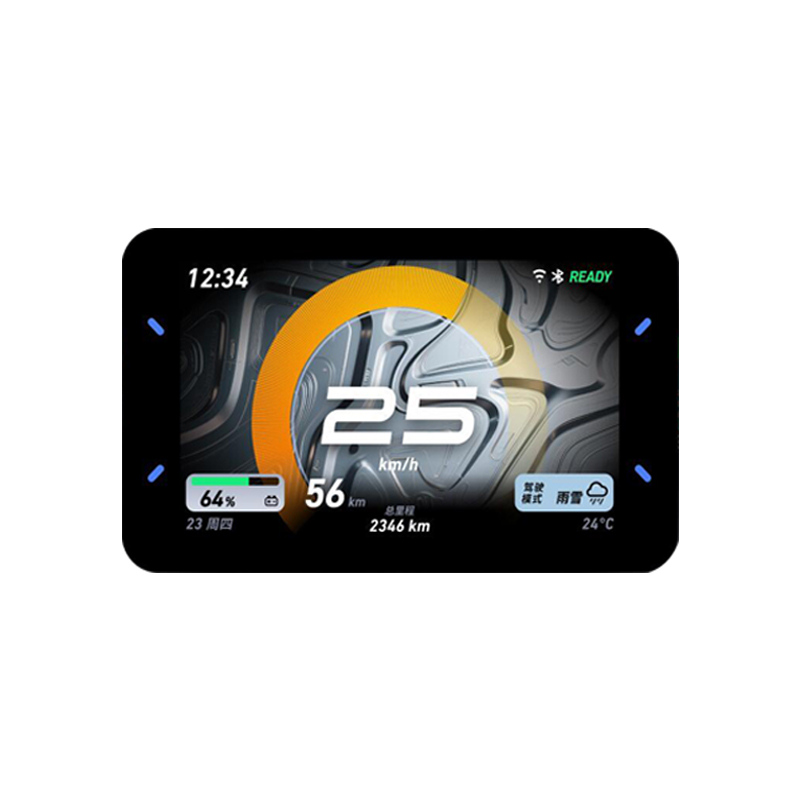

• Motorcycles/2W/3W Electric Vehicle: Real-time display of speed, battery, mileage, and other critical data.
• Agricultural Machinery/Construction Vehicles: Clear operation interfaces for outdoor tasks.
• Special Vehicle Modifications: Adaptable to high-intensity use in fire trucks, ambulances, etc.

Get Your Automotive Display Solution Now

Are you searching for a "wide-temperature, design-compatible" display module for Instrument Cluster for 2W/3W Electric Vehicle (Automotive Application)? Please feel free to contact us!
