サイズ :
2.99"部品番号 :
FT-03013-B-N-A解決 :
268*800視野角 :
Freeインターフェース :
RGBタッチスクリーン :
/ドライバーIC :
ST7701SN温度 :
-20℃-70℃輝度 :
1000 cd/㎡モジュール外形(mm) :
26.62*78.20*1.63AAサイズ(mm) :

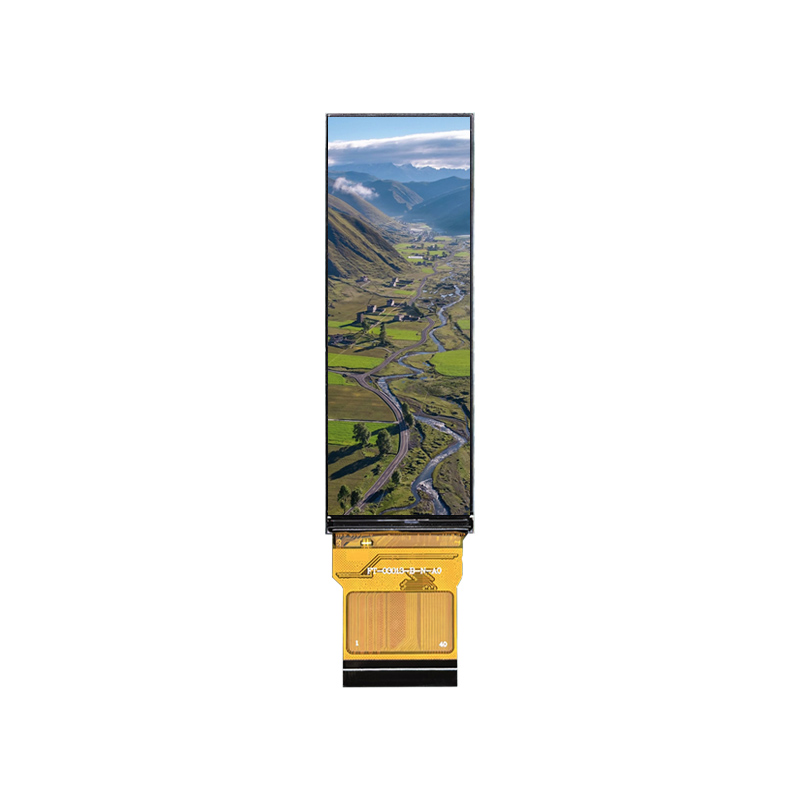

22.86*97.15The model#FT-03013, is a bar-type 2.99 inch TFT LCD Display tailored for bar-shaped display scenarios. It has a resolution of 268(RGB)×800, of portrait mode. Its LCD Active Area (AA) size is 24.12×72.00 mm, and module outline dimension is 26.62×78.2mm. It features an ultra-thin 1.63mm module thickness and narrow-bezel design, along with high brightness of 1000cd/m² and a contrast ratio of 1000:1. This 2.99 inch TFT LCD module is built with driver IC of ST7701SN, supporting RGB interface, delivering bright, high-definition visuals with stable operation to meet diverse custom and mass-production requirements for bar-type displays.

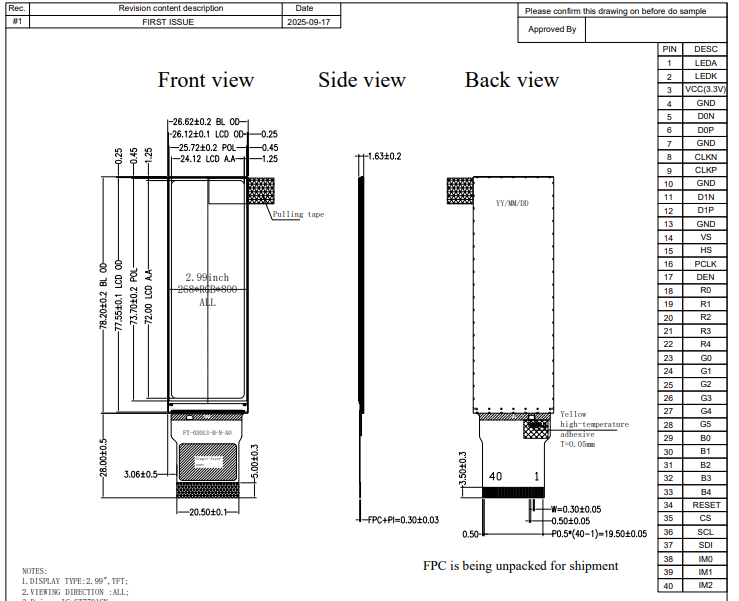

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | FT-030133-B-N-A |
| 2 | LCD Size | 2.99 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 268(RGB)×800 |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 24.12×72.00 mm |
| 6 | Module Dimension | 26.62×78.2×1.63 mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| 9 | Contrast | 1000:1 (Typ.) |
| 10 | Luminance | 1000 cd/㎡ |
| 11 | Backlight | 6 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch screen |
Features:
Bar-type Design:
the 2.99 inch bar-shaped dimensions precisely match specialized applications such as automotive instrument panels, industrial bar controllers, and smart wearable bar screens. Unlike conventional square displays, it offers superior adaptability.
High-Definition Resolution:
The 268×800 resolution ensures distortion-free, sharp rendering of text, icons, and simple images without stretching or blurring, meeting precise display demands.
Narrow Bezel & Ultra-Thin Profile:
The narrow-bezel design maximizes display AA size, enhancing visual immersion. Its 1.63mm ultra-thin module thickness saves internal device space, fitting compact and lightweight equipment structures.
High Brightness:
With a surface brightness of 1000cd/m², the 2.99 inch bar-type LCD display remains clearly visible in outdoor strong-light environments, ideal for high-brightness applications like outdoor equipment and automotive dashboards.
High-Performance Interface:
Powered by the ST7701SN driver IC, it ensures stable, low-power operation. The standardized RGB interface supports fast data transmission and broad compatibility with mainstream control boards.
Applications:
With the features of bar-type design, high brightness, high definition, and ultra-thin narrow-bezel appearance, this 2.99 inch bar-type TFT display module is widely used across industries, including:
🔹 Smart Home: Smart door locks, thermostat panels, and appliance control screens, where narrow bezels enhance a futuristic aesthetic.
🔹 Industrial Control: HMI interfaces and equipment status displays, ensuring clear, high-brightness readouts.
🔹 Automotive Devices: In-vehicle dashboards and rearview mirror auxiliary screens, providing visibility even in strong sunlight.
🔹 Medical Instruments: Portable diagnostic devices and monitors, where the ultra-thin design saves space.
🔹 Outdoor Terminals: Charging stations and self-service kiosks, adapting to complex lighting conditions with high brightness.
Why Choose Us-Shengfeng?
Shengfeng is an LCD manufacturer integrating design, R&D, production, sales, and service, offering unmatched advantages:
📌 Technical Edge:
Self-developed backlight modules support customization (size, brightness, interfaces, etc.) with rapid response to client needs.
📌 Quality Assurance:
Certified under ISO9001 quality management standards, with end-to-end quality control processes.
📌 Service Excellence:
Comprehensive technical documentation (specifications, interface definitions, driver code) is provided.
24/7 technical support to resolve development challenges promptly.
