154.21*85.92The 7.0 inch HDMI display module features a standard resolution of 1024RGB×600, equipped with an independent HDMI video input port and a dedicated USB touch port. Adopting a 5V USB single-line power supply design, it boasts simple wiring and plug-and-play performance. Compatible with Windows, Android and Linux operating systems, it serves as an optimal cost-effective all-in-one solution for compact visual touch display applications.

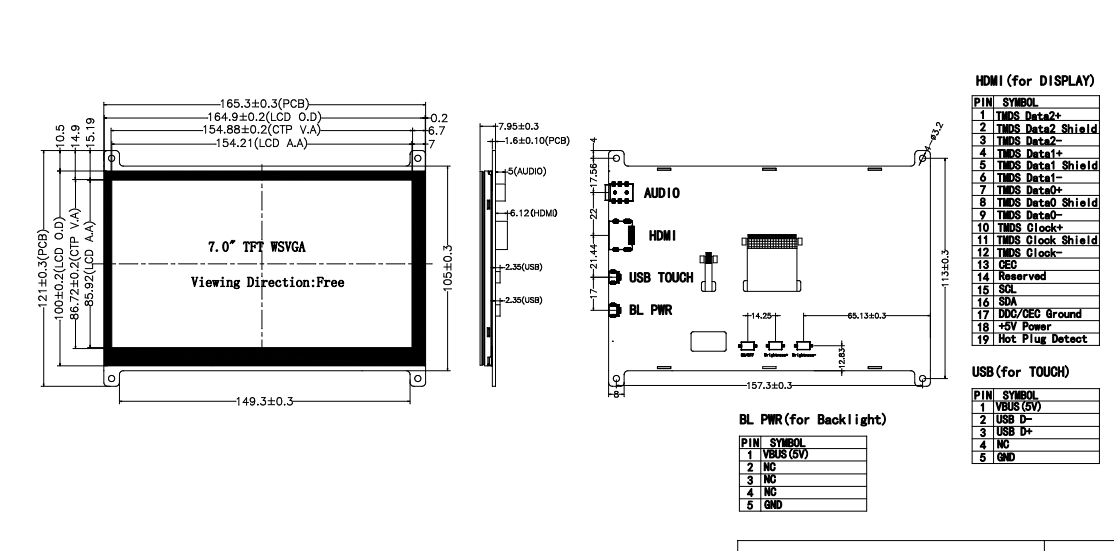

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | FT-70WSV058-WCT |
| 2 | Module Size | 7.0 inch |
| 3 | Module Structure | 7.0 inch TFT LCD Display+7.0 inch Touch + PCB |
| 4 | LCD Display Type | 7.0 inch IPS TFT LCD, normally black, transmissive |
| 5 | Viewing Direction | Free |
| 6 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| 7 | Resolution (Pixels) | 1024(RGB)×600, WSVGA, |
| 8 | Display Mode | IPS, Normally Black, Transmissive |
| 9 | TFT LCD A.A | 154.21 x 85.92mm |
| 10 | CTP V.A | 154.88 x 86.72mm |
| 11 | Module Dimension | 165.30 x 121.0 x 7.95mm |
| 12 | Module Interface | TFT LCD: HDMI interface |
| 13 | Module Interface | CTP Touch: USB interface |
| 14 | System Support | Win 7/Win 8/Win 10(Plug and play) |
| 15 | System Support | Android/Linux（need to be configured） |
| 16 | Power Supply | USB 5.0V |
| 17 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 18 | Backlight Type | LED white |
DC Characteristics:
| Paramater of DC characteristics | Symbol | Min. | Typ. | Max. | Unit |
| PCB Operating Voltage | VUSB | - | 5.0 | - | V |
| LCD I/O Operating Voltage | VDD | 3.0 | 3.3 | -3.6 | V |
| Input Voltage "H" level | VIH | 0.7*VDD | - | VDD | V |
| Input Voltage "L" level | VIL | VSS | - | 0.3*VDD | V |
| Output Voltage "H" level | VOH | VDD-0.4 | - | VDD- | V |
| Output Voltage "L" level | VOL | VSS- | - | VSS+0.4 | V |
CTP Touch Characteristics:
| Item of CTP chrracteristics | Specification | Unit | Remark |
| Panel Type | Glass Cover+Glass Sensor | - | - |
| Resolution | 1024x600 | pixel | - |
| Surface Hardness | 6H | - | - |
| Transparency | ≥82% | - | - |
| Interface Type | USB interface | - | - |
| Support Points | 5(Max) | - | - |
| Supply voltage | 3.3 | V | - |
Applications:
This 7.0 inch integrated HDMI touch TFT display adopts an all-in-one structure integrating LCD panel, G+G capacitive touch panel (CTP) and driver PCB. Featuring high integration, it saves customers the secondary lamination and hardware wiring processes. It is suitable for various scenarios including embedded development, industrial control equipment, Raspberry Pi, industrial main controllers, and equipment human-machine interfaces, etc.
