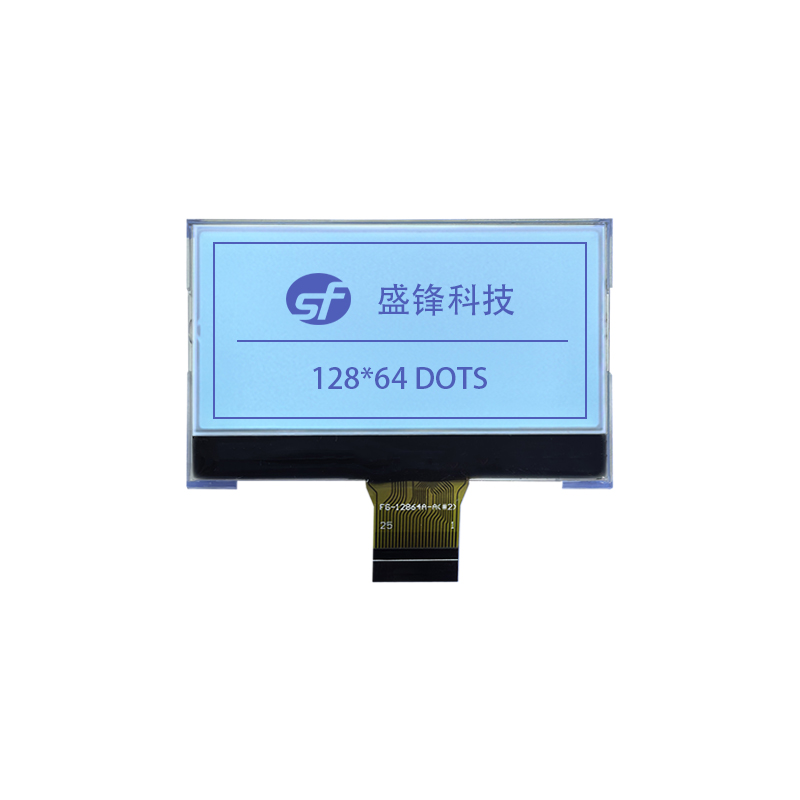

FSTN LCD Transflective Custom Graphic 128*64 COG module UC1601S MCU 8080 Interface

This graphic 128*64 LCD module is FSTN Postive Transflective mode with white backlight, providing excellent display effects and reading experiences. The custom 128*64 graphic module offers two flexible structural configuration options to meet the thickness and interface requirements of different application scenarios.

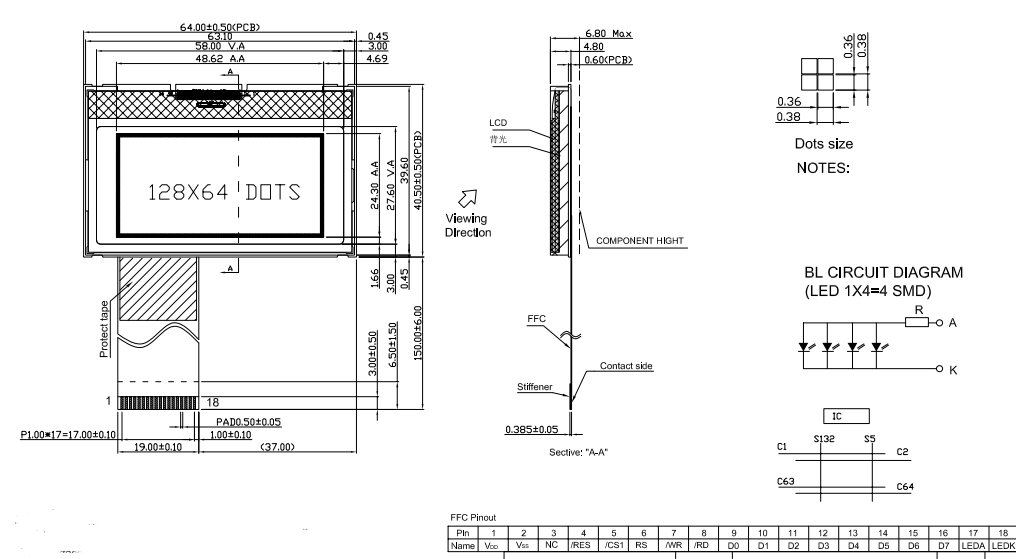

 Drawing:

Features:

Resolution Advantage: The mainstream 128×64 dot-matrix resolution offers strong versatility, satisfying a variety of display needs.

Excellent Display Type: The FSTN positive-display and transflective mode ensures excellent readability under various lighting conditions.

Dual-Structure Options：It supports two interface and structural configurations to meet different design requirements.

• Structure Option 1

      - Composition: LCD + FPC + backlight

      - Interface: 25PIN FPC interface, with a thickness of only 4.8mm, making it more lightweight and thin.

      - Module Outline Dimensions: 63.1(W) × 39.6(H) × 4.8(D) mm

      - Viewing Area: 54.0 × 27.0 mm

• Structure Option 2

       - Composition: LCD + FPC + backlight + PCB

       - Interface: 18PIN interface, with a total thickness of 6.8mm.

       - Module Outline Dimensions: 64.0(W) × 40.5(H) × 6.8(D) mm

       - Viewing Area: 54.0 × 27.0 mm

Why Choose Our 128*64 LCD Module?

We, Shengfeng, are a dedicated LCD manufacturer, focusing on the design and production of monochrome LCD panels and modules utilizing TN, STN, FSTN, and VATN technologies. Here's why our 128*64 LCD module stands out:

• Rich Experience: With 10 years of professional manufacturing experience, the quality is trustworthy.
• Reliable Quality: A strict quality control system ensures that the products have passed ISO certification.
• Strong Technical Support: A professional technical team provides comprehensive technical support.
• High Cost-Effectiveness: Competitive prices and timely delivery capabilities.
• Worry-Free After-Sales Service: Complete after-sales service and technical support.

Application:

The Model# FG-128640A, its high-performance display module offers two flexible shipping methods to meet the needs of different application scenarios. It is an ideal choice for industrial equipment, medical instruments, smart homes, control panels, and other products.
